PP-57D
Compact Digital Microwave Transmitter
Discontinued Product

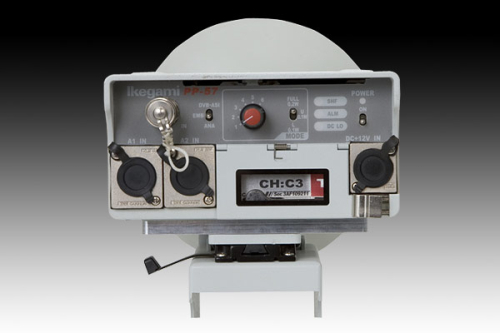

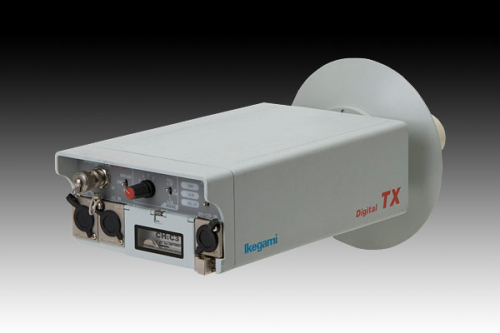

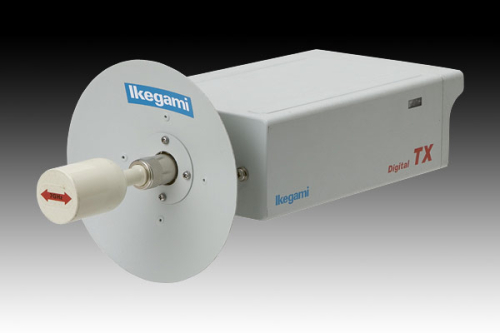

The 57D is a compact and light-weight one-piece microwave transmitter.
The design construction permits a variety of applications including mobile or limited space locations.
It can input a HD-SDI or SD-SDI signal with a built-in codec.
Despite of the compactness, it outputs 200mW power (7GHz Band) and enables a practical distance transmission.
- A MPEG-2 or JPEG2000 or H.264 Encoder is available as built-in codec.
- 2 transmitter models is available.
- Input signal available with HD-SDI / DVB-ASI (TS).
- Mounting the PP-57D on ENG camera realizes a wireless camera system.
- About 3,000m transmission in OFDM, at 24Mbps bit rate.
Built-in Codec available with MPEG-2 or JPEG2000 or H.264
MPEG-2 or H.264 HD/SD Encoder : HD-SDI (SMPTE292M) / SD-SDI (SMPTE259M)
JPEG2000 Encoder : HD-SDI (SMPTE292M)
Two models available for a choice by application
The PP-57D is an OFDM modulation model. The OFDM modulation maintains robust transmission even in multi-path conditions. The PP-57D is switchable between the single carrier QAM and OFDM.
Input signal available with HD-SDI / DVB-ASI (TS).
Input signal available with HD-SDI / DVB-ASI (TS). Rate converter available in the DVB-ASI (TS) input mode.
Mounting the PP-57/57D on ENG camera for wireless system
Mounting the PP-57/57D on ENG camera for wireless system Hardware is available to mount a PP-57/57D on an Ikegami HDTV camera to realize a wireless HD camera system.
3,000m transmission in OFDM at 24Mbps bit rate
The PP-57D system transmits about 3,000m in OFDM, at 24Mbps bit rate, with an omni-directional TX antenna and 0.3φm parabolic RX antenna.
| Transmitter | |
| Frequency | Band: 3.5GHz / 5.8GHz / 7GHz / 10GHz / 12GHz Preset Channel: 1ch *Channel cassette type |
| Modulation Method |
QAM : 64QAM / 32QAM / 16QAM / QPSK(Option) |
| Output Power |
QAM : 0.3W |
| Input Signals | HD/SD-SDI : BNC x1 (used when the built-in MPEG-2 HD/SD Encoder or the JPEG2000 or H.264 HD/SD Encoder is installed. *In case of the JPEG2000 HD Encoder, only HD-SDI available. *Embedded Audio: Max 8ch with the built-in MPEG-2 HD/SD Encoder or JPEG2000 HD Encoder. *As for PP-57/57D, connector is shared for SDI and DVB-ASI. Selectable with the switch on the front panel. Analog Audio : XLR-3 x2 2ch Analog (0dBm: 600Ω, balanced) DVB-ASI (TS) : BNC x1(Connector is shared with HD/SD-SDI Input. (200-880mVp-p/75Ω, unbalanced) PP-57/57D： Line rate 270Mbaud, 75Ω, TS 204 byte (incl. 16-byte dummy), Data Packet/Data Burst supported, Equipped Rate converter function. Bit rate: Standard 6 rate(PP-57) Standard 10 rate(PP-57D) |
| Power | Requirement : DC+12V(+10.8V ～ +16.8V) Consumption: Less than 60W (at DC+12V) |
| Weight | Less than 2.5kg |
| Dimensions (excl. outshoot) | W140 x H70 x D210mm |
